The Nightmare Forge

Startle System - Triggered Audio & Relay Controller

$200.00 USD

Sale Sold out

Options Standard UPGRADE: 5A Power Supply UPGRADE: Separate NC & NO Connectors UPGRADE: 5A Power Supply w/Separate NC & NO Connectors

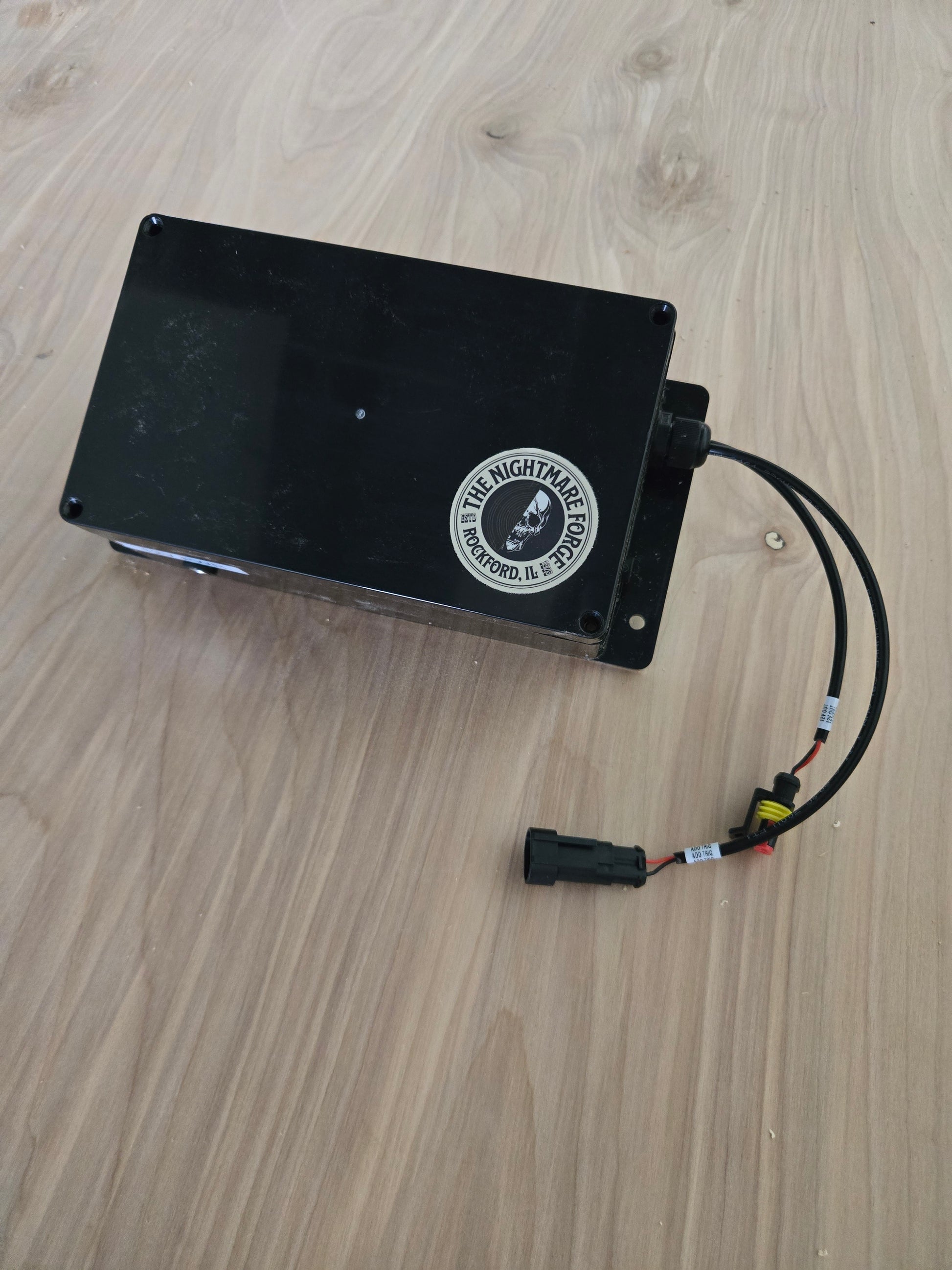

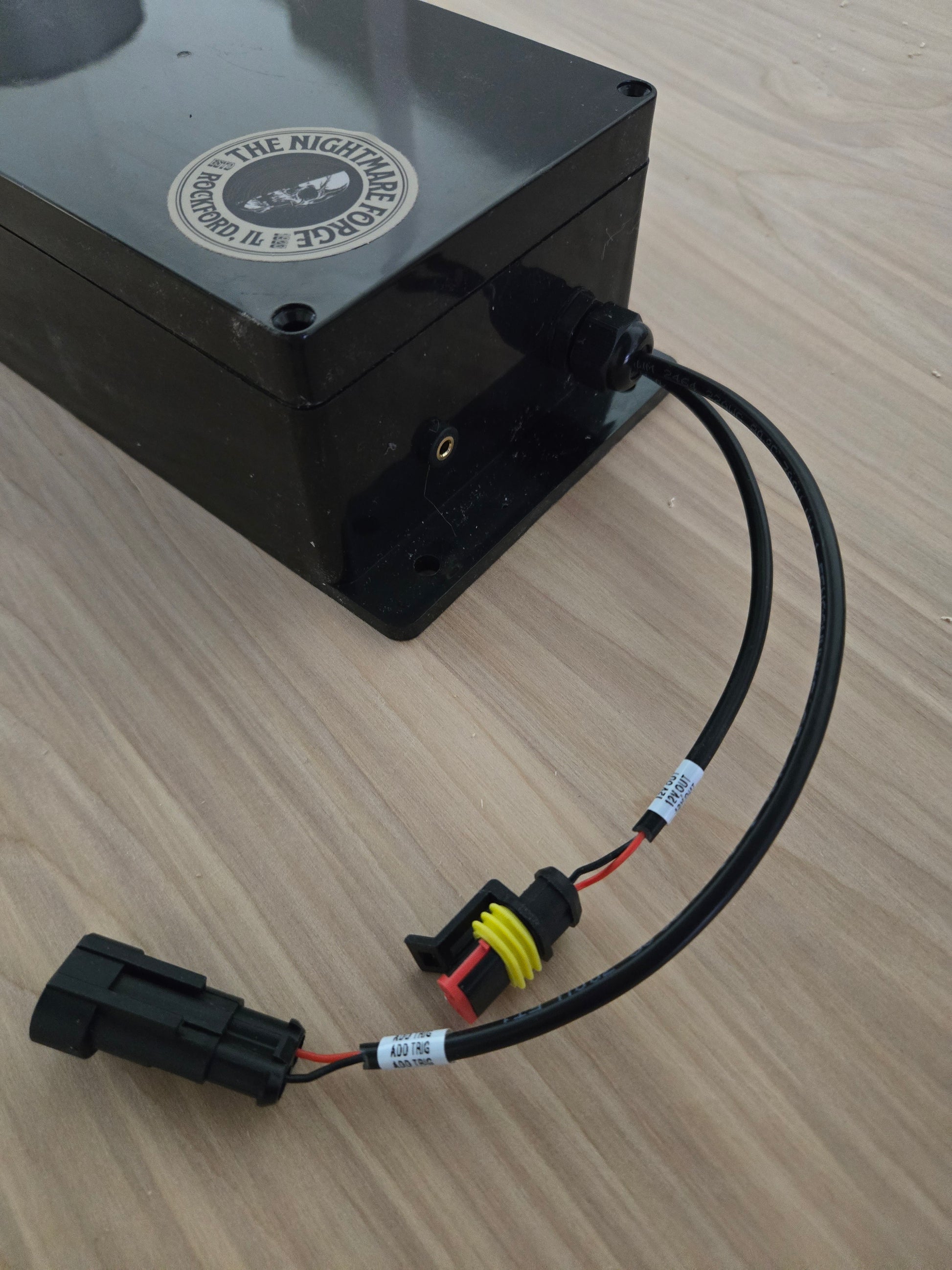

The Startle System is a compact, self-contained audio and relay controller designed to enhance actor-driven moments and environmental effects in immersive attractions.

When triggered, the system plays a programmed audio file while simultaneously controlling a 12V output through an integrated relay. The delay timer allows precise control over when the output activates, enabling synchronized lighting, props, or additional effects.

Sold With Standard Options:

• Startle System controller unit

• 6 ft 3.5mm audio cable

• 12V 2A power supply

• Output connection plug

• External trigger connection plug

• Integrated wireless trigger

View full details

Specifications

Features

• Integrated audio playback module with user-loadable sound files

• Stereo output via 3.5mm jack for powered speakers

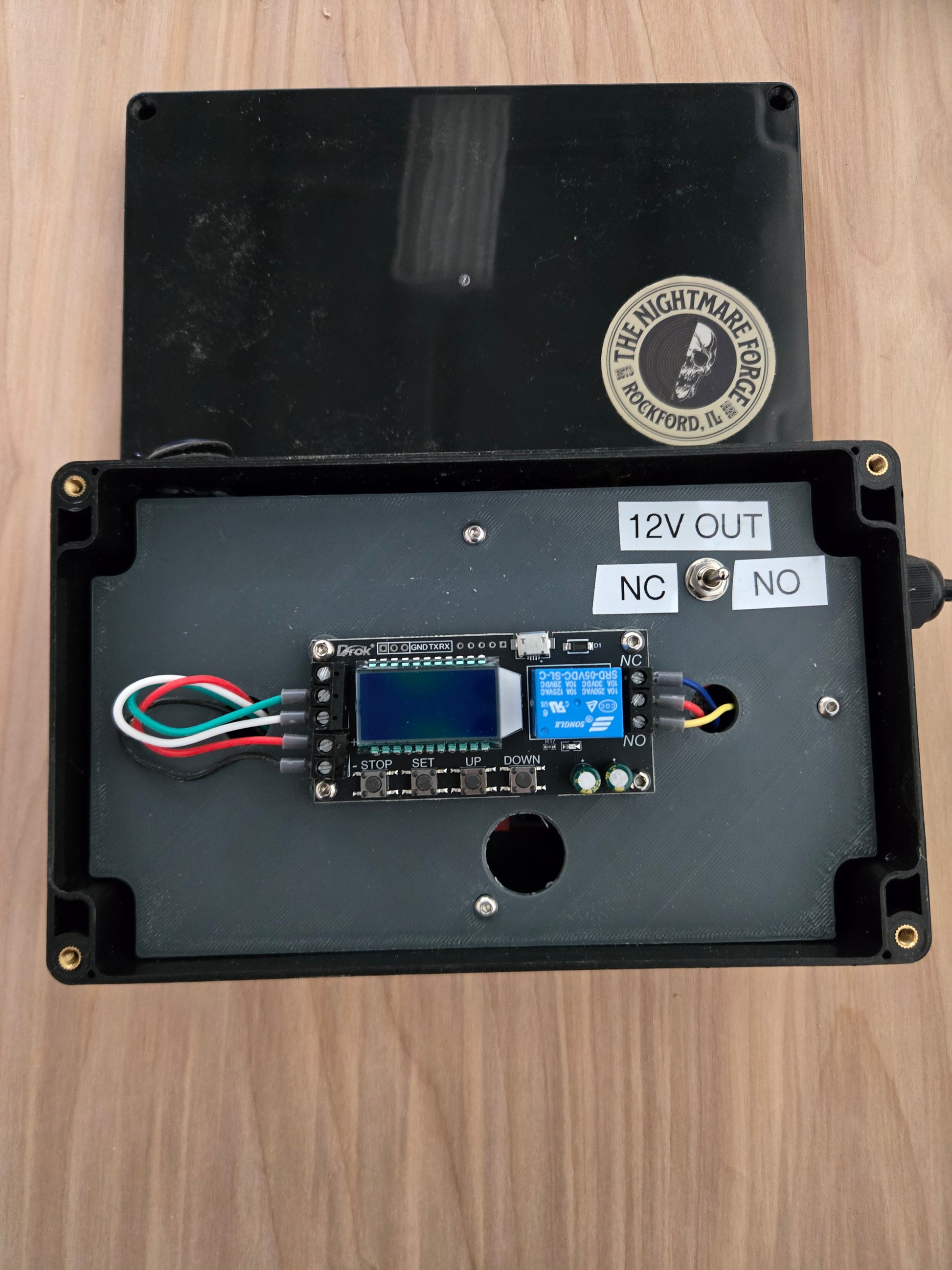

• Built-in relay output with selectable Normally Open (NO) or Normally Closed (NC) configuration

• Adjustable delay timer for controlled relay activation

• External trigger input for push-button activation

• Wireless remote control system included

• Weather-resistant enclosure for flexible installation

Technical Specifications

Power Input: 12V DC

Included Power Supply: 12V 2A

Audio Output: 3.5mm stereo (line level)

Relay Output: 12V (NO/NC selectable)

Trigger Inputs: External push button + wireless remote

Enclosure: Weather-resistant project box

Fulfillment Information

This product is built to order.

Orders typically ship within 5–7 business days after purchase.

Larger quantities may require additional production time.
